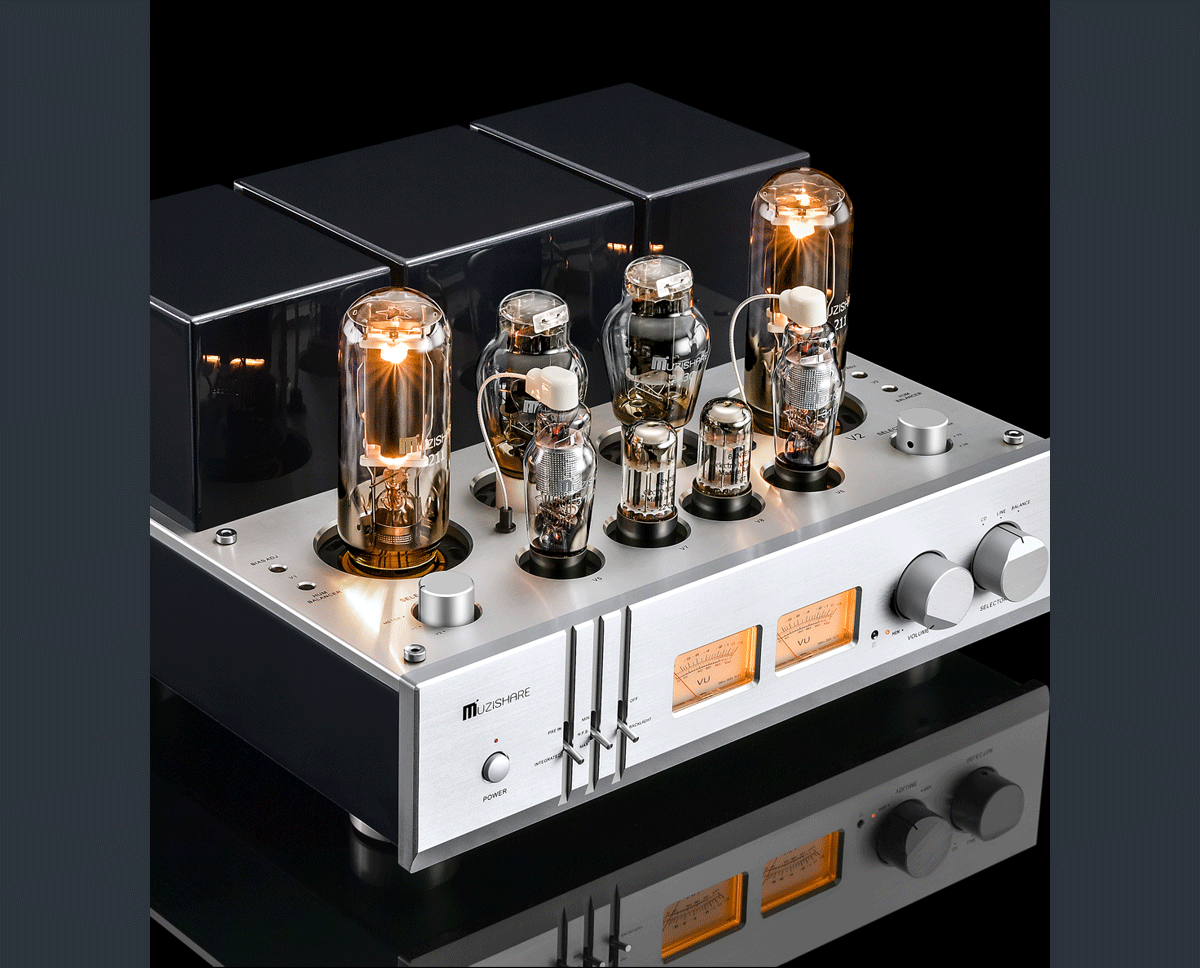

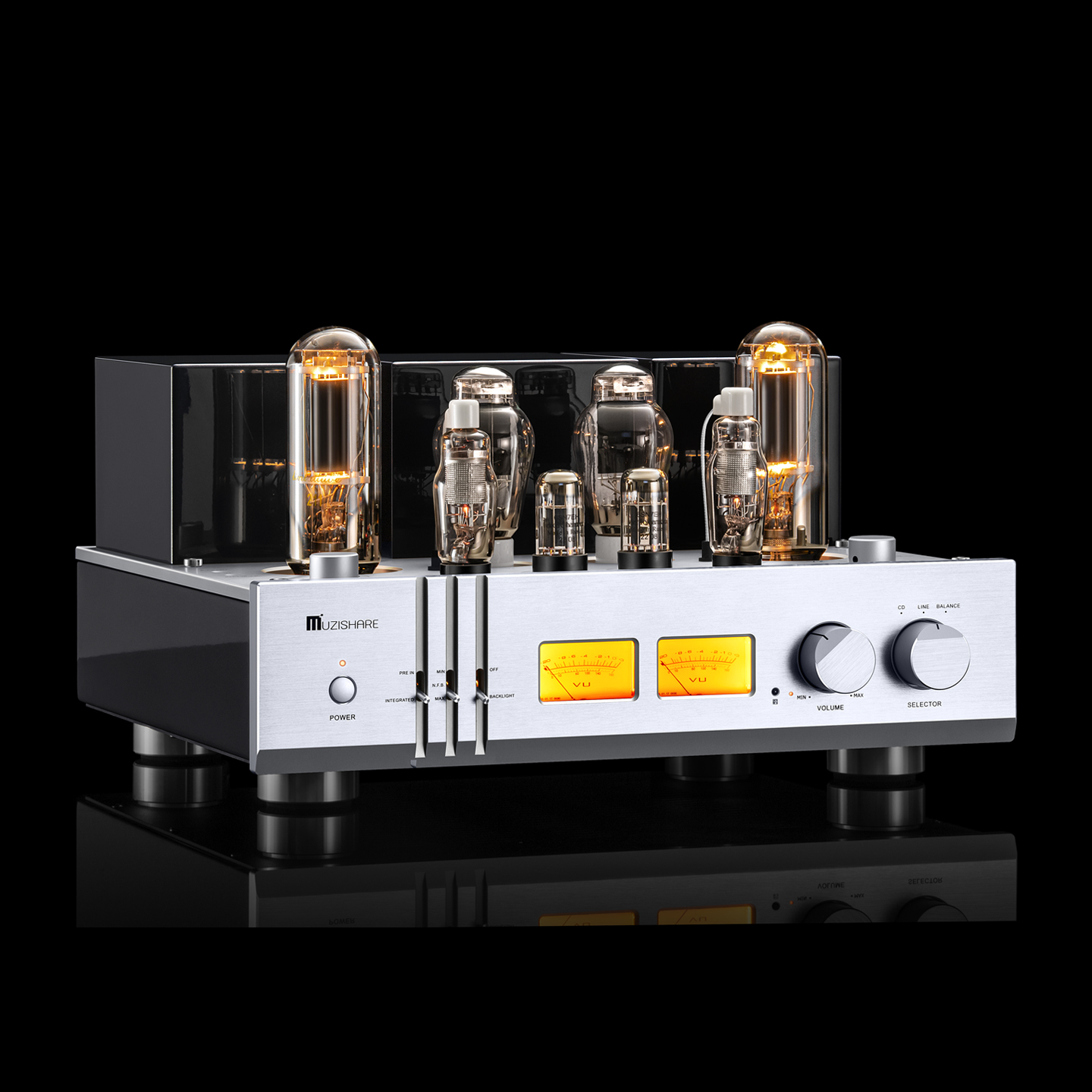

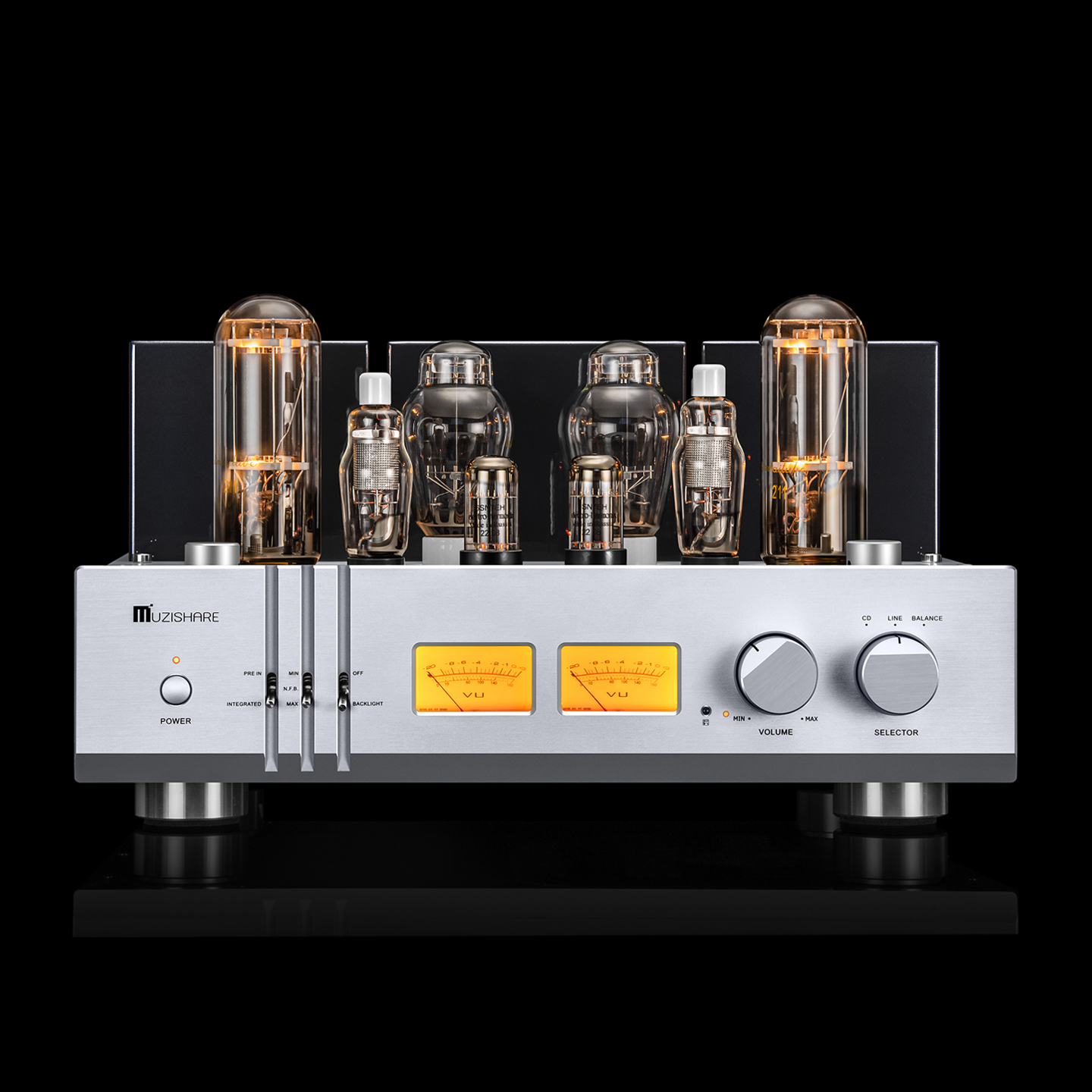

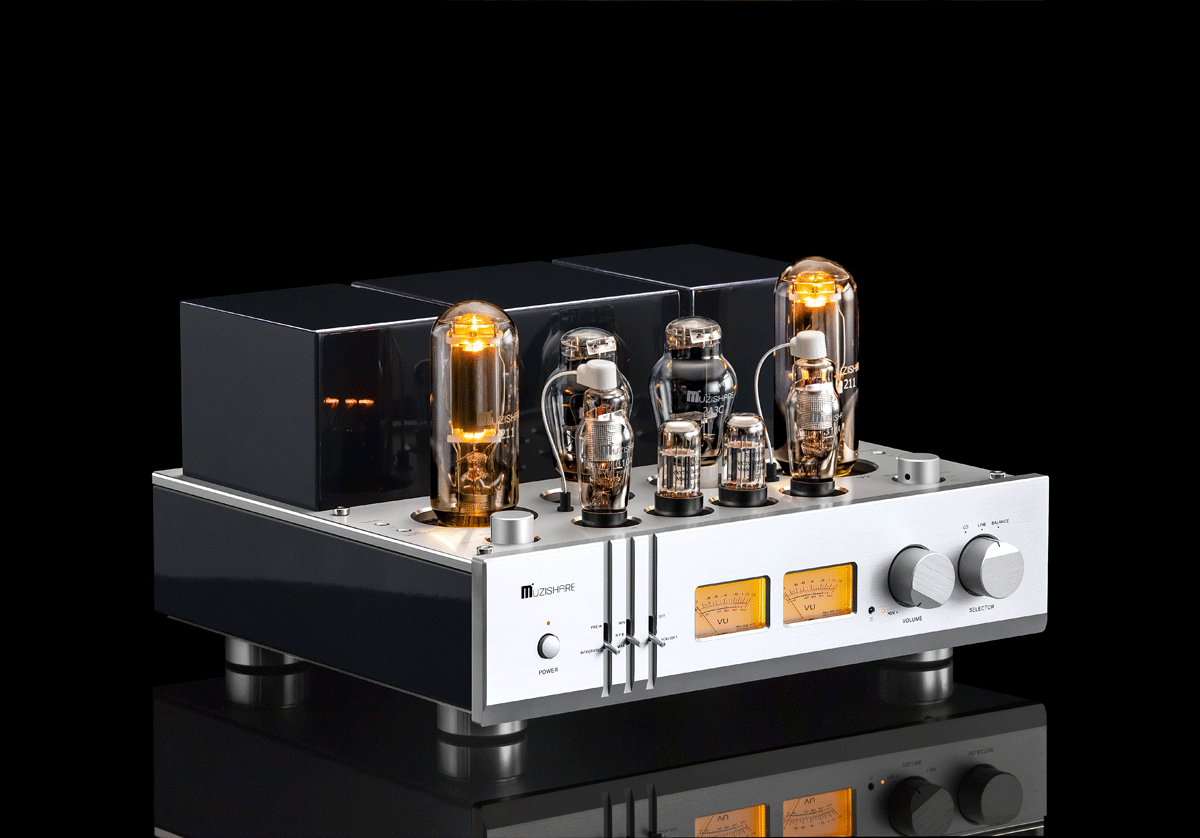

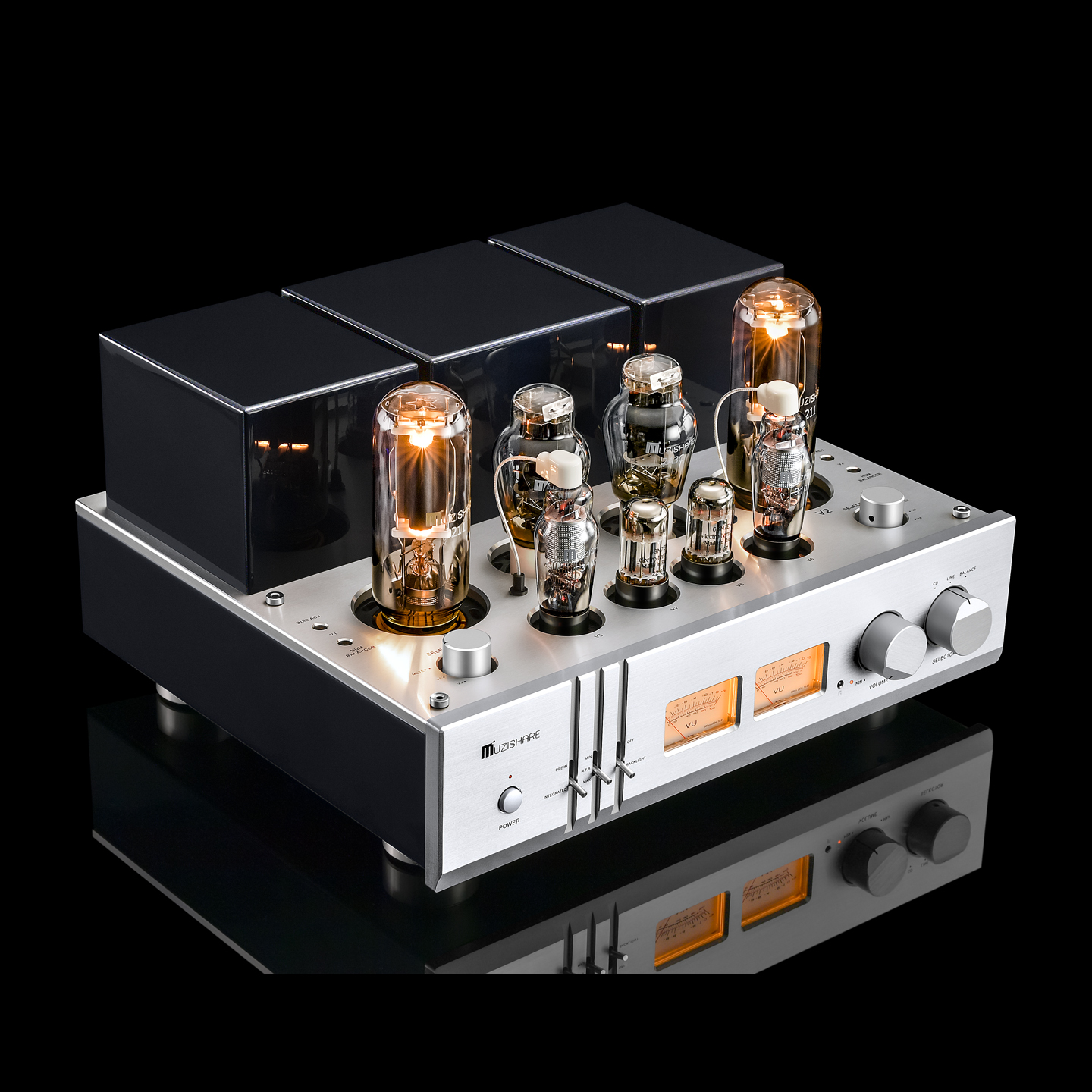

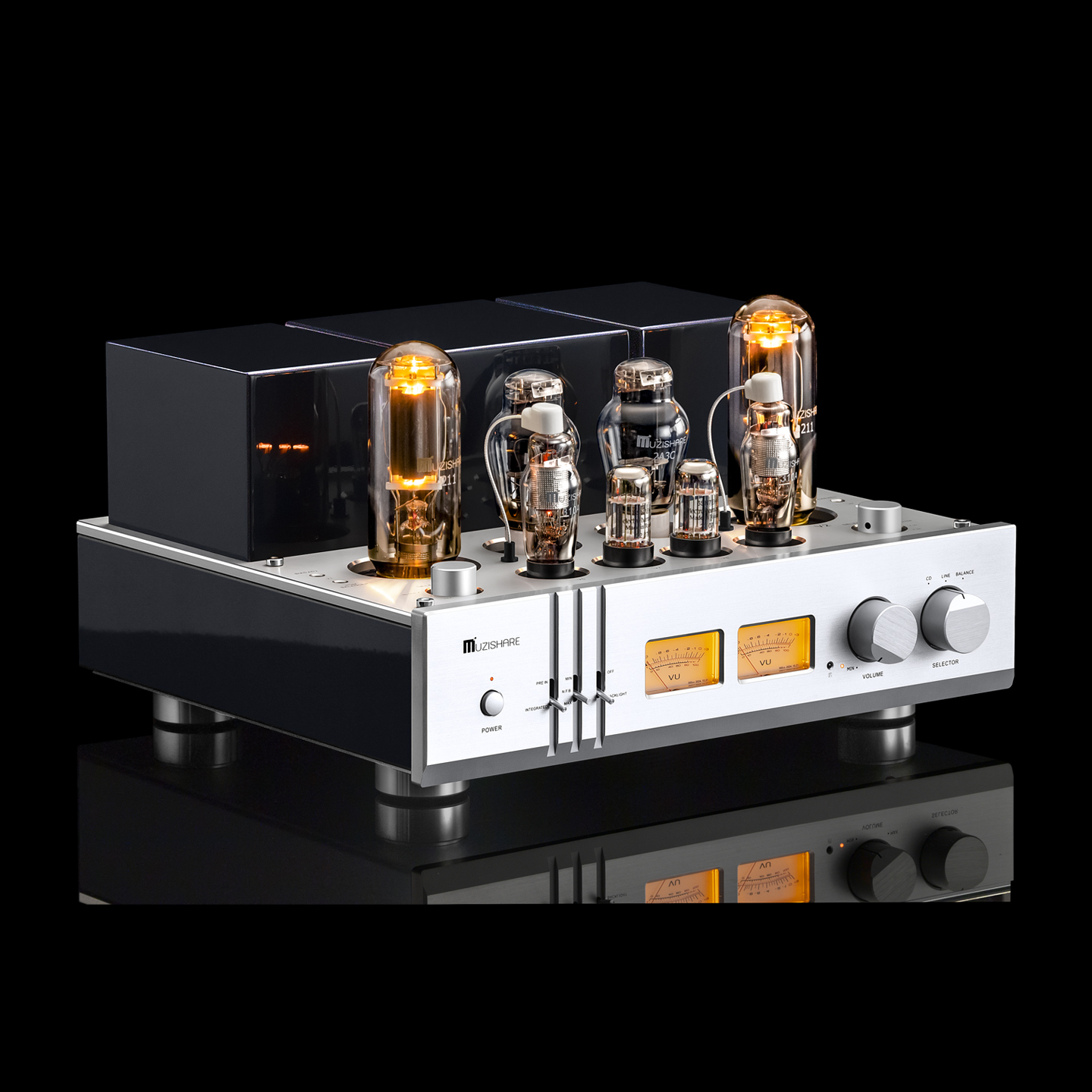

MUZISHARE X20pro 2A3-to-211 Integrated Vacuum Tube Power Amplifier

Original price was: $5,500.00.Current price is: $4,450.00.unit

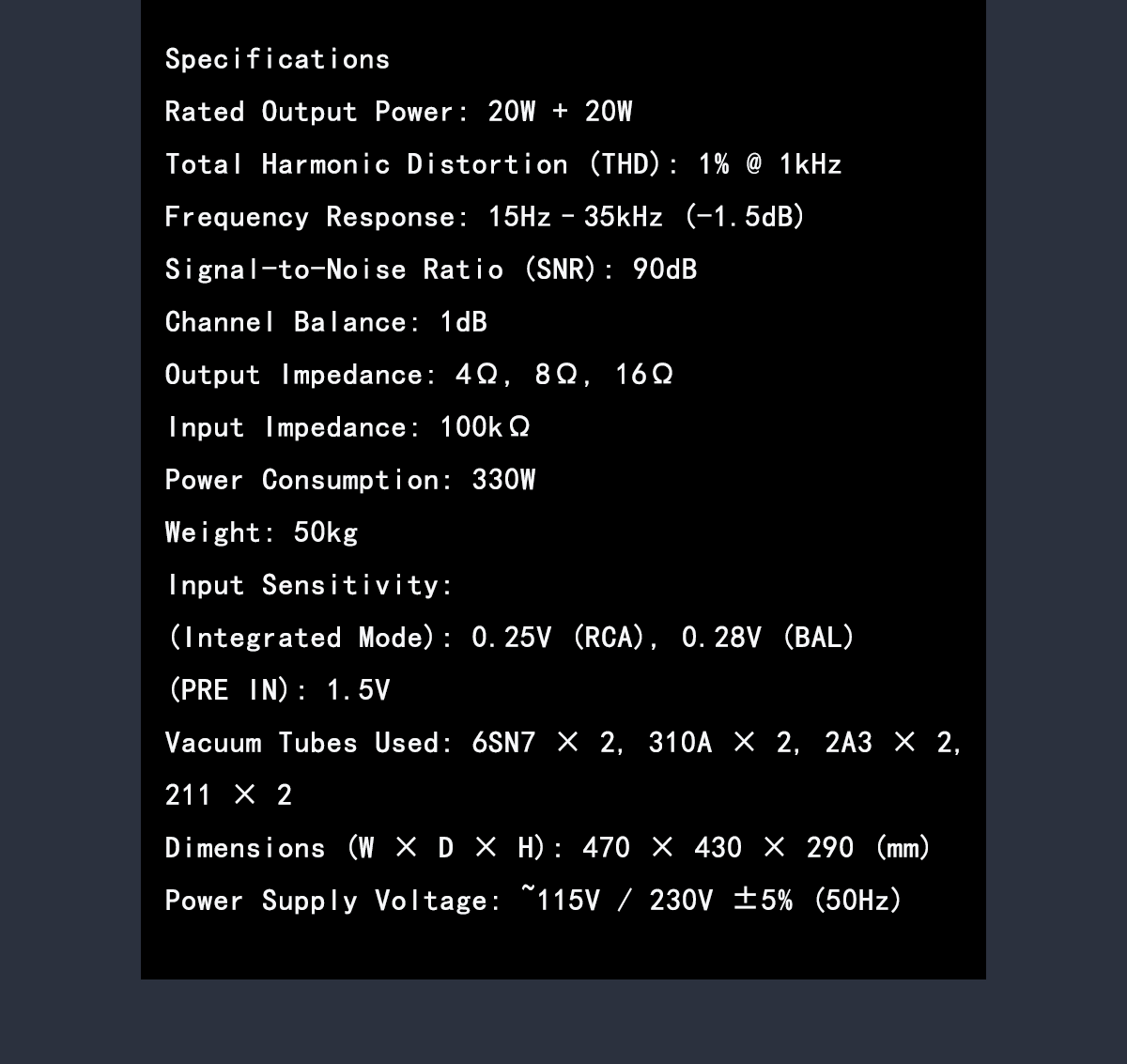

Specifications Rated Output Power: 20W + 20W Total Harmonic Distortion (THD): 1% @ 1kHz Frequency Response: 15Hz–35kHz (-1.5dB) Signal-to-Noise Ratio (SNR): 90dB Channel Balance: 1dB Output Impedance: 4Ω, 8Ω, 16Ω Input Impedance: 100kΩ Power Consumption: 330W Weight: 50kg Input Sensitivity: (Integrated Mode): 0.25V (RCA), 0.28V (BAL) (PRE IN): 1.5V Vacuum Tubes Used: 6SN7 × 2, 310A × 2, 2A3 × 2, 211 × 2 Dimensions (W × D × H): 470 × 430 × 290 (mm) Power Supply Voltage: ~115V / 230V ±5% (50Hz)

SKU: X20pro 2A3 TO 211 Categories: ,
Description

Additional information
Weight 62 kg
Model

X20pro(2A3 to 211)
Voltage

115V

,

230V
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “MUZISHARE X20pro 2A3-to-211 Integrated Vacuum Tube Power Amplifier”

Your email address will not be published. Required fields are marked *
