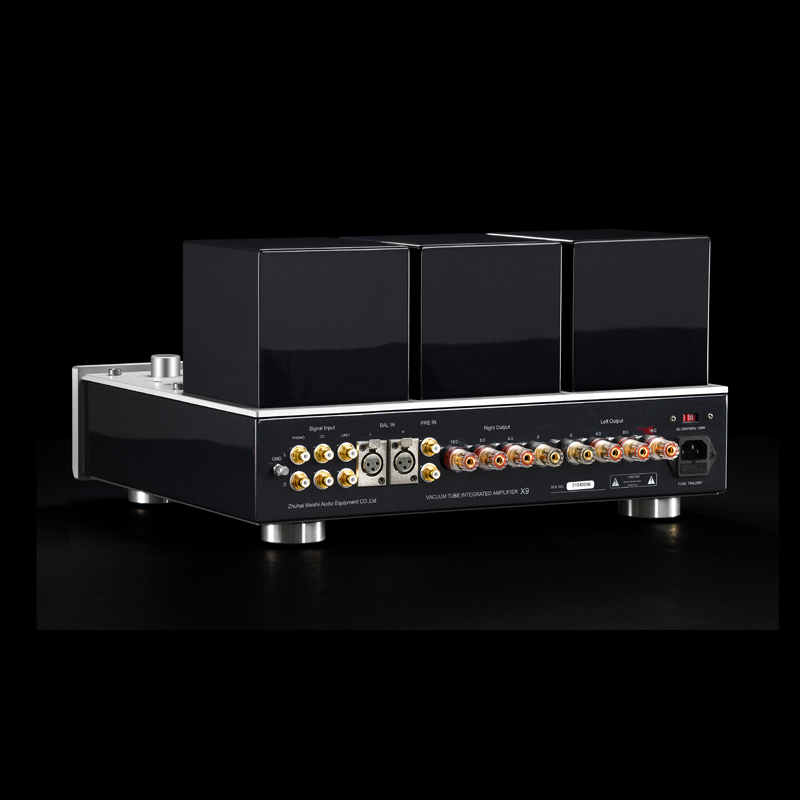

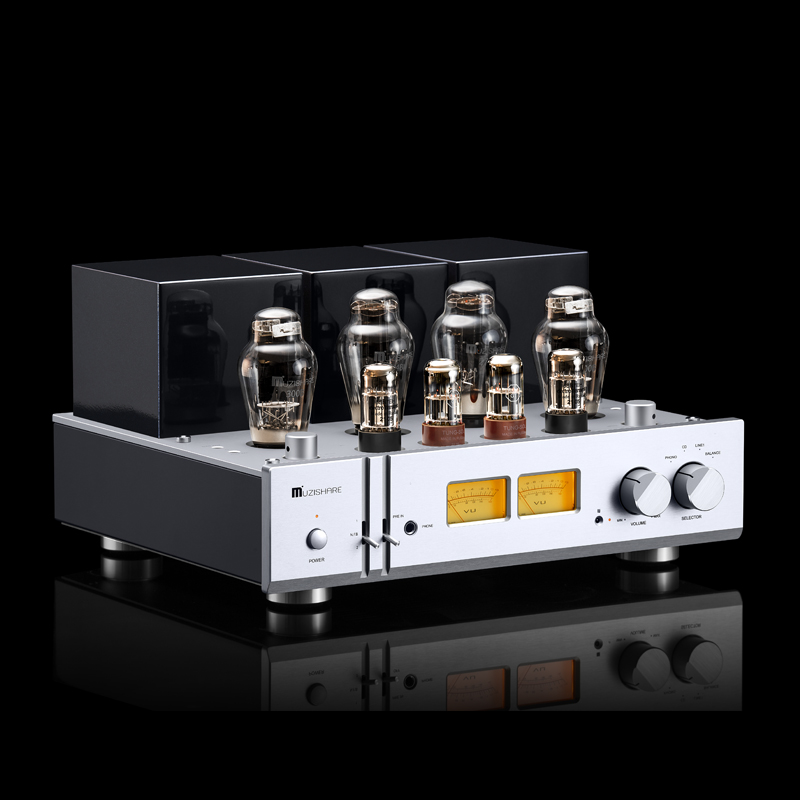

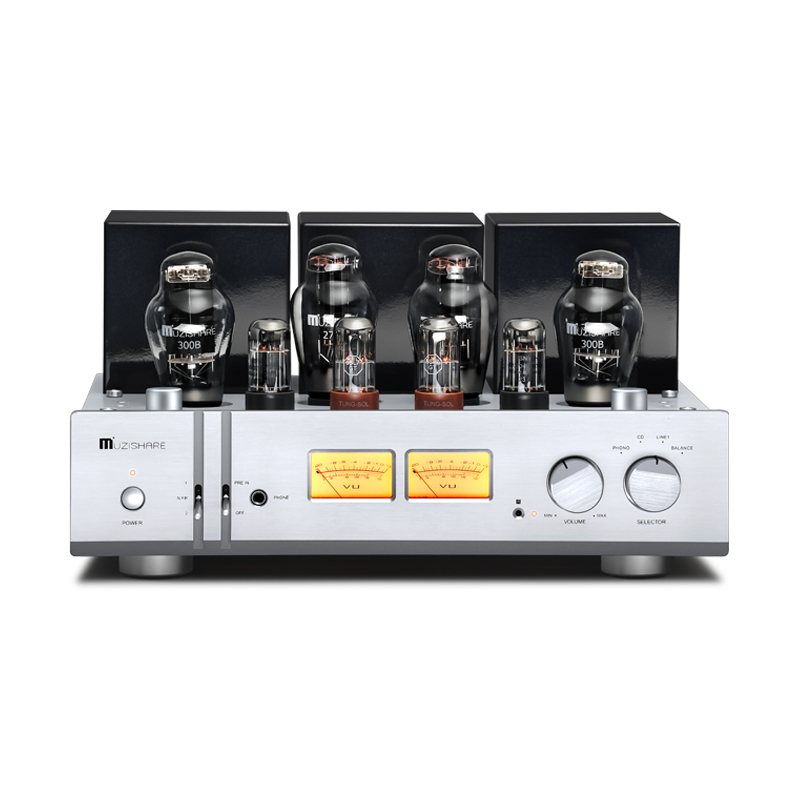

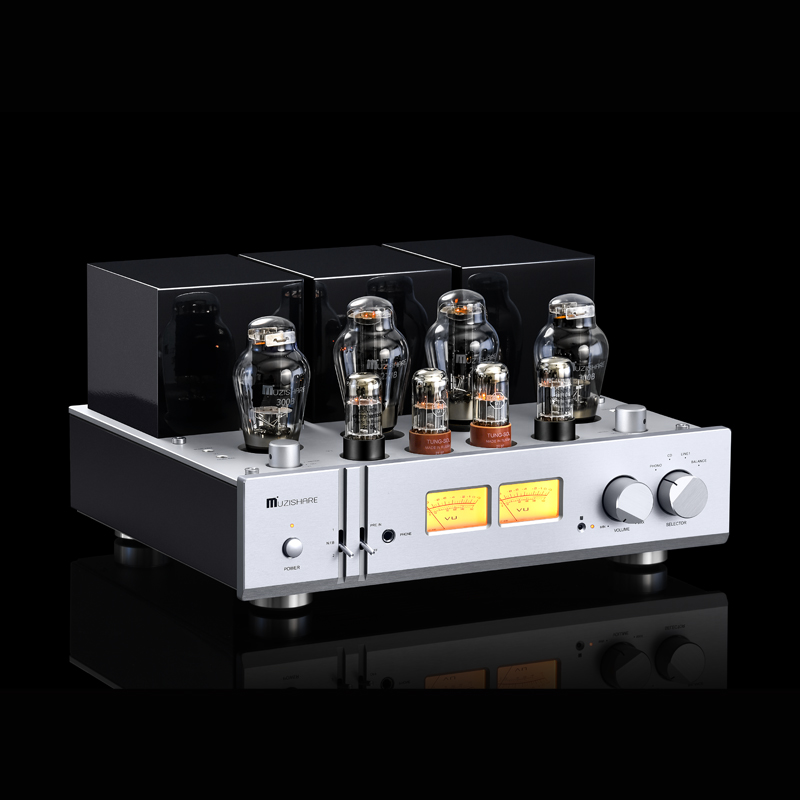

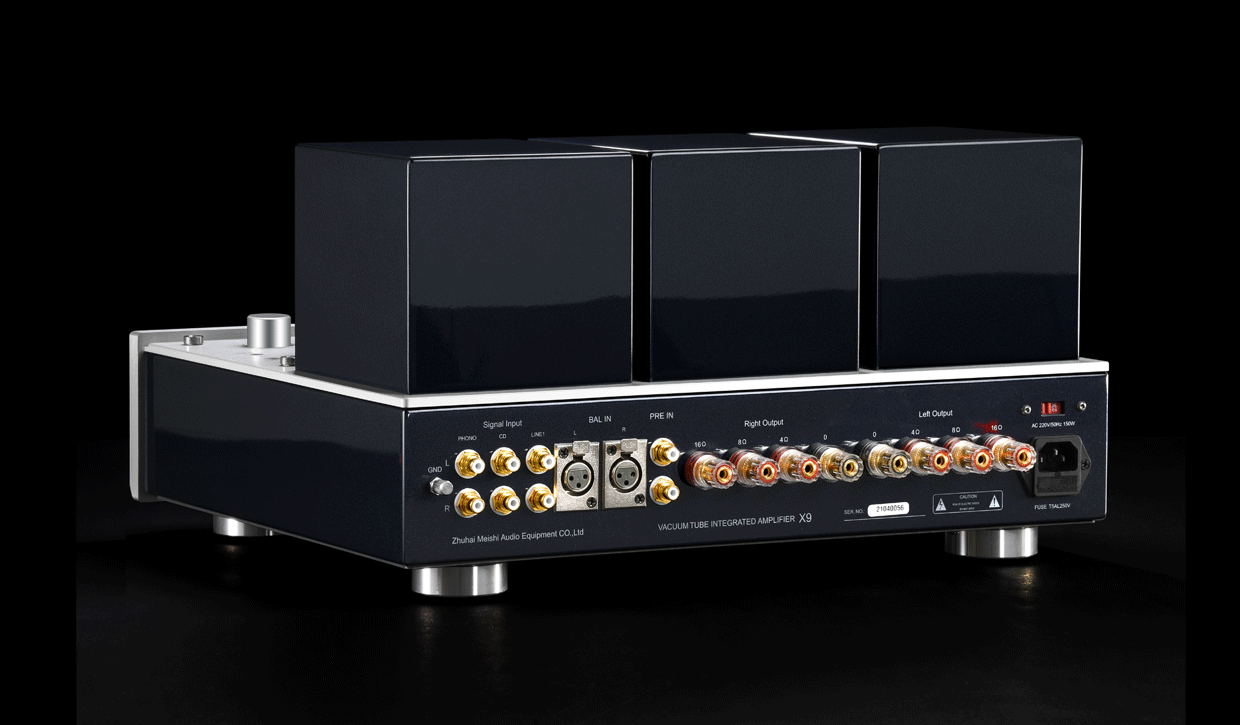

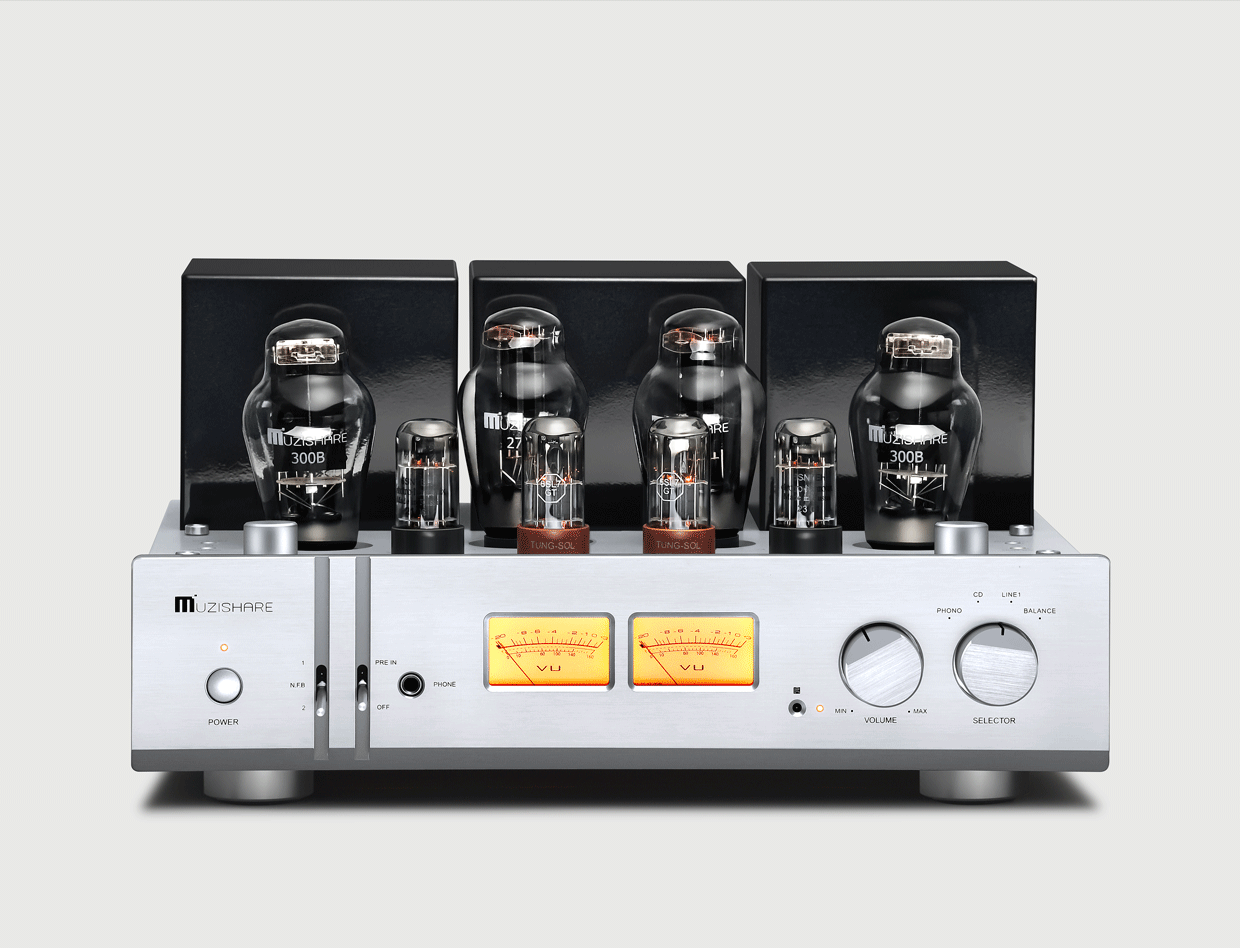

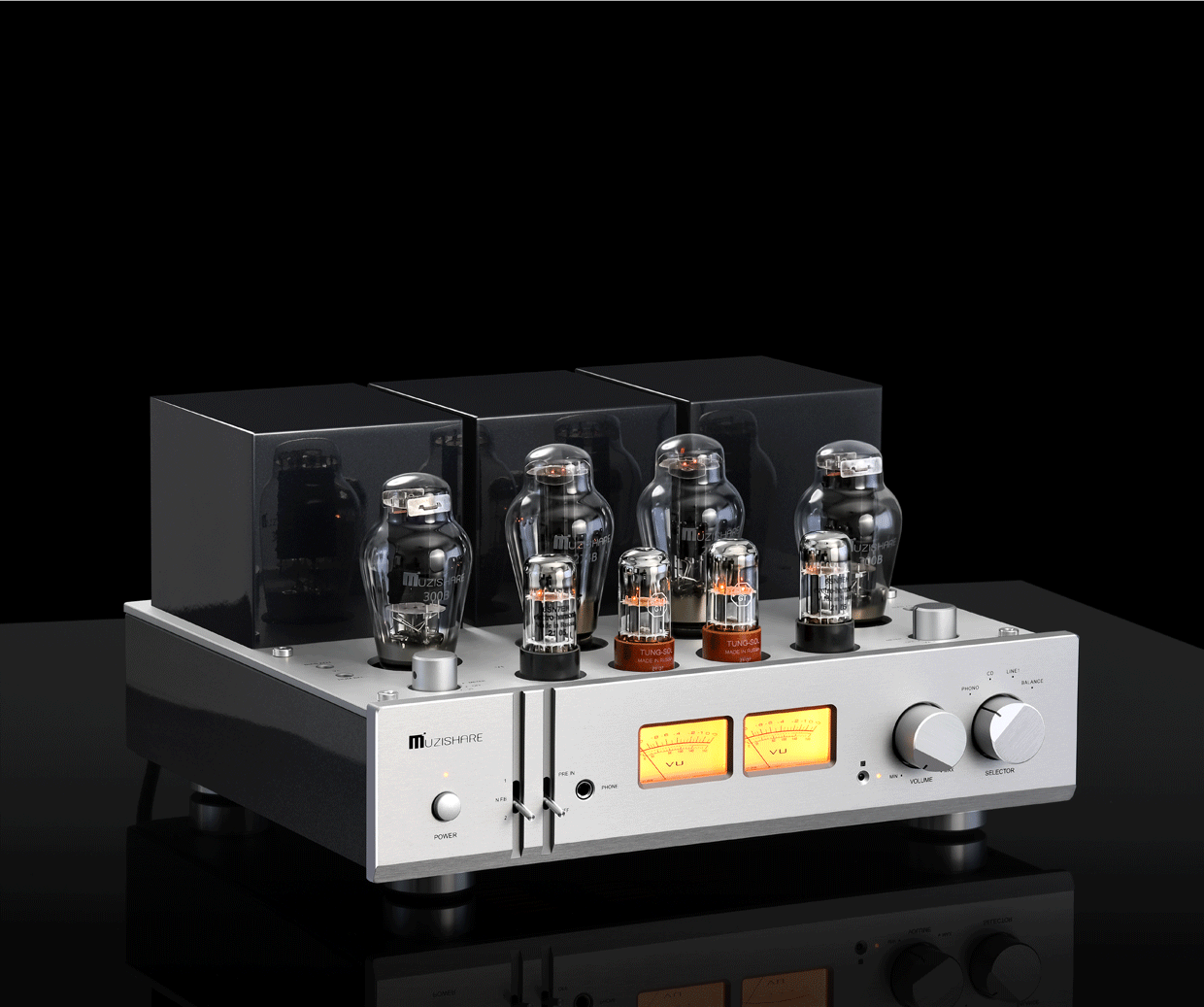

MUZISHARE X9 300B Class A combined vacuum tube amplifier

$2,500.00

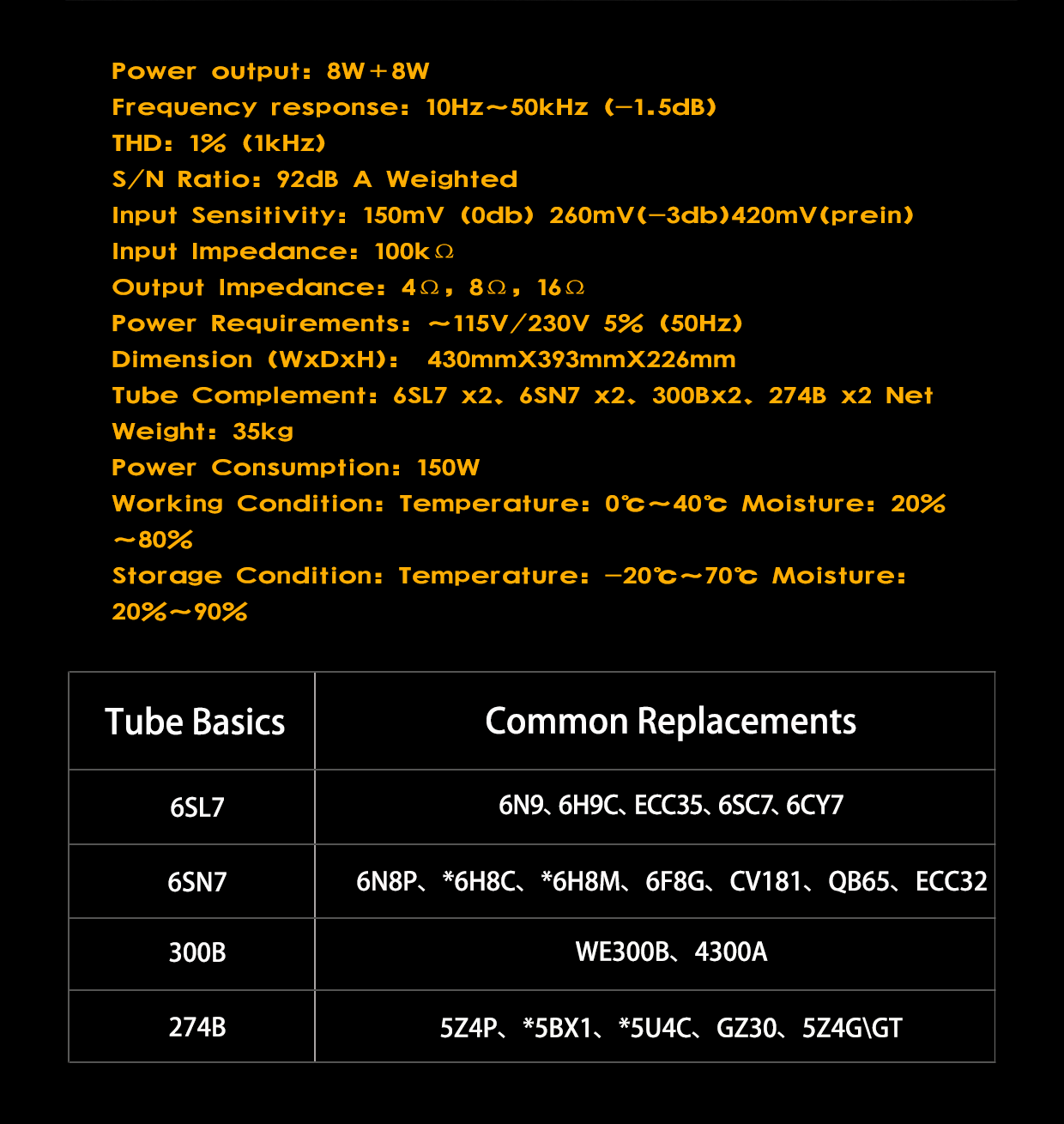

Power output：8W＋8W
Frequency response：10Hz～50kHz（-1.5dB）
THD：1%（1kHz）
S/N Ratio：92dB A Weighted
Input Sensitivity：150mV（0db）260mV(-3db)420mV(prein) Input Impedance：100kΩ
Output Impedance：4Ω，8Ω，16Ω
Power Requirements：～115V/230V 5%（50Hz）
Dimension (WxDxH)： 430mmX393mmX226mm
Tube Complement：6SL7 x2、6SN7 x2、300Bx2、274B x2 Net Weight：35kg
Power Consumption：150W

SKU: N/A Category:
Description
Additional information
Weight 35 kg
Model

X9（300B）
Voltage

115V

,

230V
