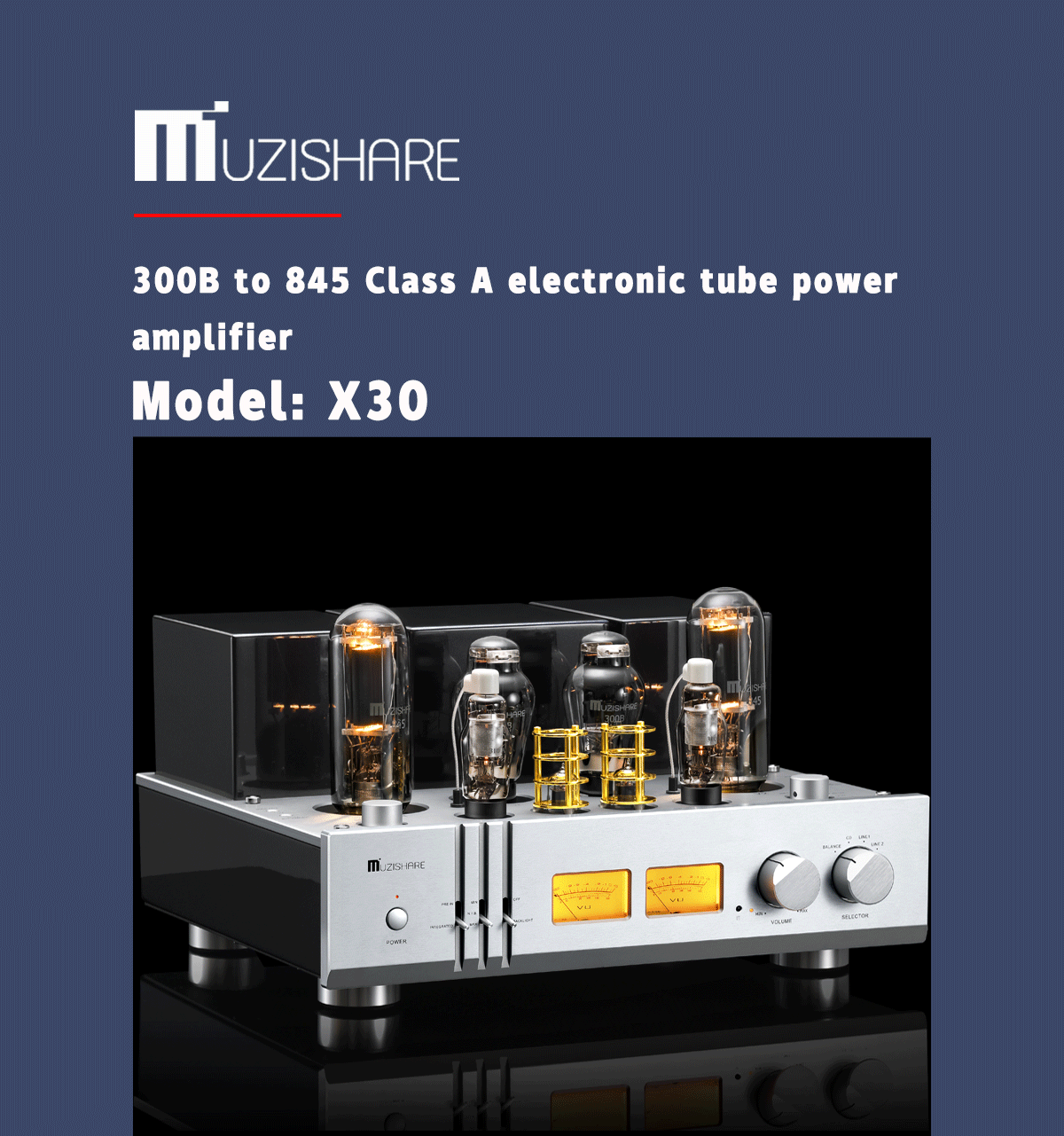

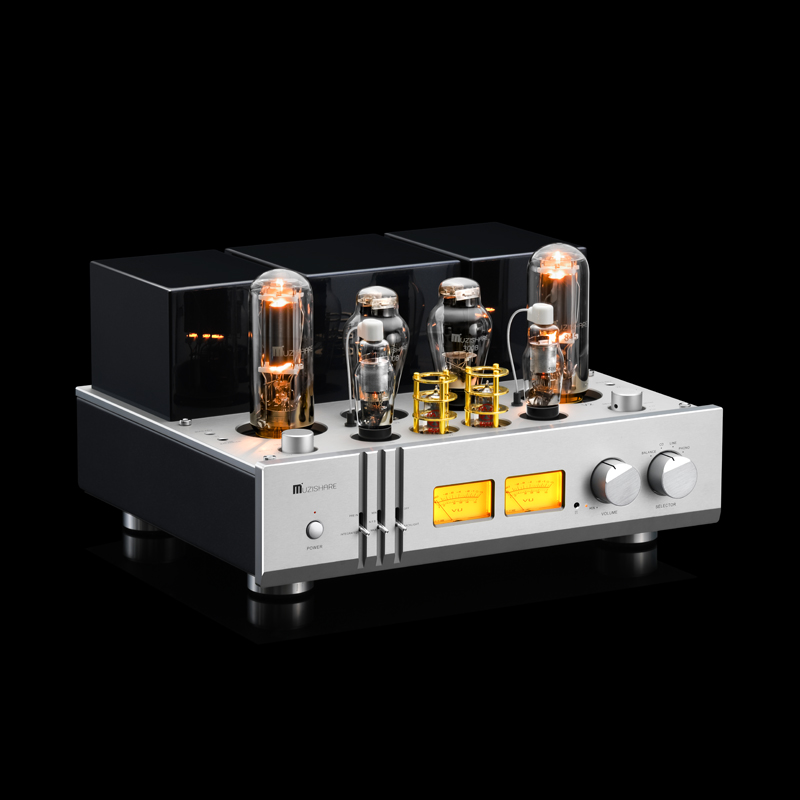

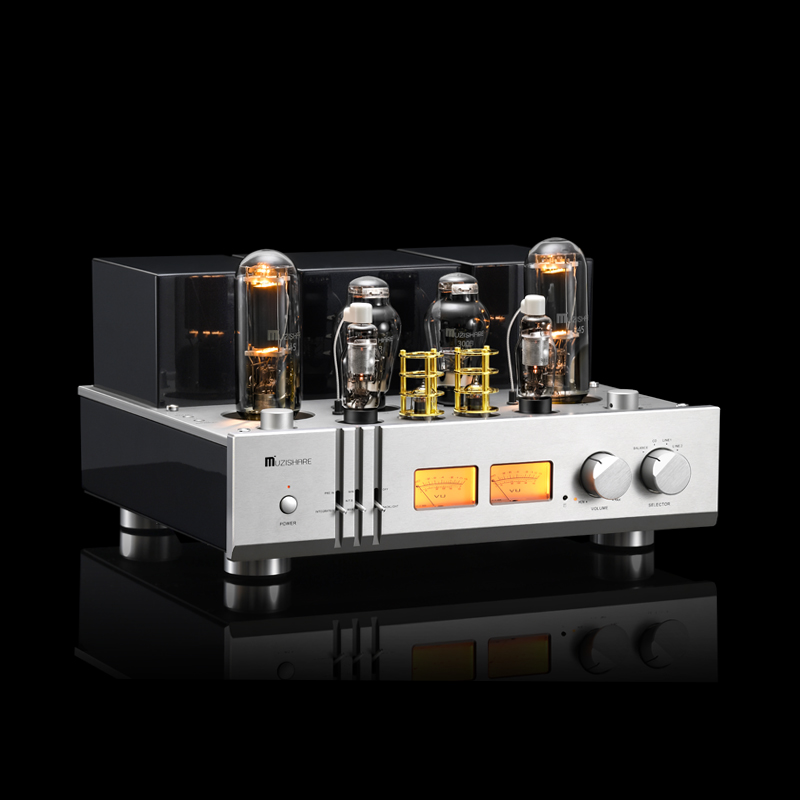

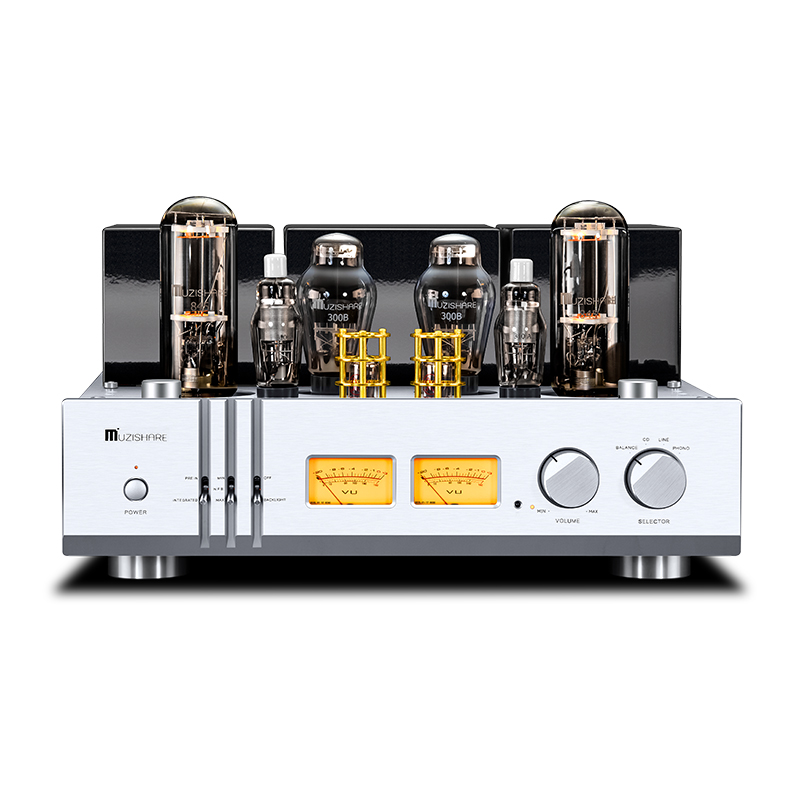

MUZISHARE X30 Integrated 300B-to-845 Class A Tube Amplifier

Original price was: $6,500.00.Current price is: $5,500.00.unit

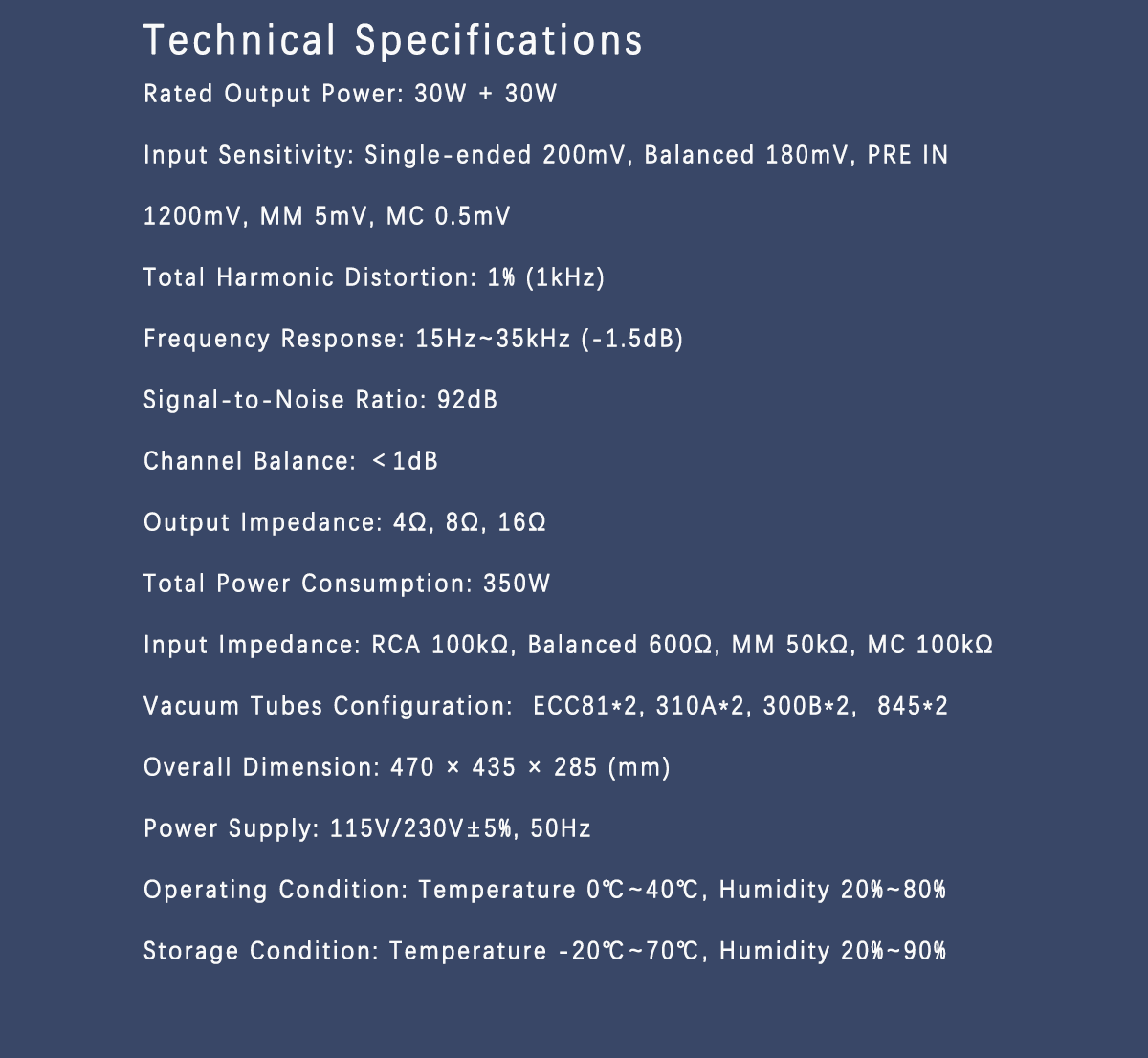

Rated Output Power: 30W + 30W Input Sensitivity: Single-ended 200mV, Balanced 180mV, PRE IN 1200mV, MM 5mV, MC 0.5mV Total Harmonic Distortion: 1% (1kHz) Frequency Response: 15Hz~35kHz (-1.5dB) Signal-to-Noise Ratio: 92dB Channel Balance: ＜1dB Output Impedance: 4Ω, 8Ω, 16Ω Total Power Consumption: 350W Input Impedance: RCA 100kΩ, Balanced 600Ω, MM 50kΩ, MC 100kΩ Vacuum Tubes Configuration: ECC81*2, 310A*2, 300B*2, 845*2 Overall Dimension: 470 × 435 × 285 (mm) Power Supply: 115V/230V±5%, 50Hz Operating Condition: Temperature 0℃~40℃, Humidity 20%~80% Storage Condition: Temperature -20℃~70℃, Humidity 20%~90%

SKU: X30 300B TO 845 Category:
Description

Additional information
Weight N/A
Model

X30 (300B TO 845)
Voltage

115V

,

230V
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “MUZISHARE X30 Integrated 300B-to-845 Class A Tube Amplifier”
